Lecture Recording System - Lumens Lecture Capture System

Lecture Recording System is an innovative media processor that allows you to record and create live streaming by mixing, encoding, and switching up to 4 HDMI or 3 IP video sources, and 4 audio sources. It is applicable for use in education, corporate, government, healthcare, house of worship, and other applications.

lecture recording system

Lecture Recording Device

  • ✔️ Recording and archiving the content of a lecture, conference or seminar
  • ✔️ Consists of hardware and software components
  • ✔️ Work in synergy to record classroom-based activities in a digital format
  • ✔️ Students view the internet on a computer or mobile device
  • ✔️ Records the presenter’s audio and video, as well as any visual aids - laptop, tablet, document camera - synchronizes them
  • ✔️ Webcasts the stream live or archives for on-demand playback
  • ✔️ It is now possible for one person to manage multiple cameras and the lecture capture station.
Enquire Now

Product Description

The Lumens lecture capture system includes two VC-A50P HD PTZ IP cameras and one VCLC102 Lecture capture system for recording video and audio simultaneously in a complete A/V environment. The cameras and lecture capture system are effective in live streaming or recording different types of applications. Several types of applications that are targeted for this system are events, lecture recording, and educational training. Recorded videos can be saved on the 1TB drive built-in the VS-LC102 or uploaded to any cloud-based software platform. Lumens products are easy to install and operate. The ability to capture a speaking engagement, event or religious service with the use of a lecture capture station and high definition cameras has made an impact in the way an audience learns or catches up on a missed event. The lecture capture method makes it easier to stream and record live events. Video recordings can be stored directly to a hard drive and uploaded to a cloud-based software platform.

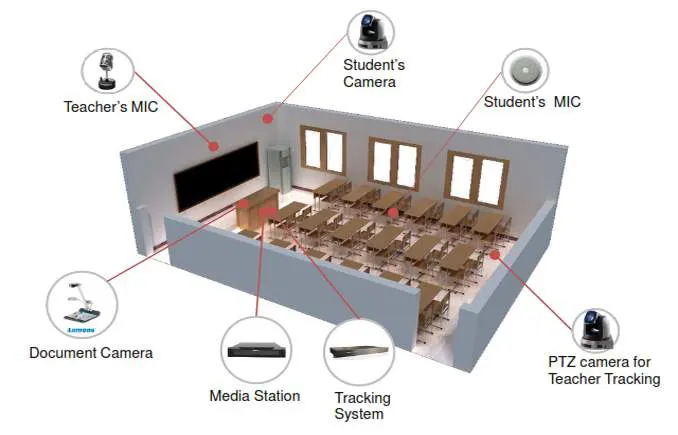

Scenario in the Classroom

lecture capture system

Applications

  • ✔️ K-12, Collaborative Classroom
  • ✔️ Higher Education
  • ✔️ Broadcasting
  • ✔️ House of Worship
  • ✔️ Healthcare
  • ✔️ Government
  • ✔️ Entertainment
  • ✔️ Corporate

Lecture Recording System Specifications

VS-LC102

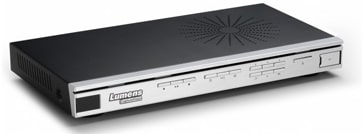

View lumens lecture recorder
Video Inputs HDMI*2 / VGA*2 / RJ-45*4
Max. Video-In Channels Maximum 4 channel synchronized recording
HDMI / VGA: 2 channels Full HD network camera: 4 channels
Video-In Modes VGA Video: 480i~1080p/60fps
VGA PC: 640*480~1920*1080
Audio Inputs Line in and Mic *2, HDMI audio *2
Video Processing Compression H.264 / AVC
Resolution and Frame Rate Max. 1080p / 60fps.
External Storage USB / eSATA
Internal Storage Built-in 1TB hard disk
Locally Stored File Output Format MP4
Control Interface IR remote control, Ethernet (Webpage), RS-232 port
Streaming Format Output : RTP, RTMP
Main Output Mode (Max.) HDMI / VGA : 1080p / 60fps
Display and Recording Layout Full screen / picture-in-picture / multi channel split screen, up to 9 layouts
Share live streaming Yes, Multicast
Webcasting Supports Youtube Live, UStreaming, Adobe Media server
Local File Playback Yes
View course content on any device Yes
Post Lecture Editing Yes, insert watermarks, title, and trailer
Schedule Recording Yes
Video File Export USB Flash Drive / FTP / SFTP
Dimensions 13.94 x 7.4 x 1.8 inch
354 x 187.96 x 45.97 mm
Weight 3.3 lbs (1.5 kg)

Lumens PTZ Camera VC-A50P

View lumens PTZ camera
Sensor 1/2.8" 2MP CMOS
Video Output Channels 1080p 60 / 59.94 / 50 fps,
1080i 60 / 59.94 / 50 fps,
1080p 30 / 29.97 / 25 fps,
720p 60 / 59.94 / 50 fps,
Optical Zoom 20x
Panning Angle -170° ~ +170°
Tilting Angle -30° ~ +90°
Preset Positions 128
Video Output(HD) Interface 3G-SDI, HDMI, Ethernet
Network Interface ONVIF / RTSP Streaming RTMP Streaming
PoE PoE+ (IEEE802.3at)
Camera Control Interface / Protocol RS-232 / RS-422 / Ethernet
Video S/N Ratio < 50dB
Shutter Speed (Max.) 1/1 ~ 1/10,000 sec
Focal Length f = 4.7 ~ 94 mm
Horizontal Viewing Angle 63°
Aperture F1.6 ~ F3.5
Minimum Illumination 1.0 lux (F1.6, 50IRE, 30fps)
Minimum Object Distance 1.2m
Image Flip Yes
Weight 4.4 lbs (2 kg)
